Braided Tube Features
Braided Tube Features
Braided Tube Features

Why would you choose CUUMed’s braided tubing?

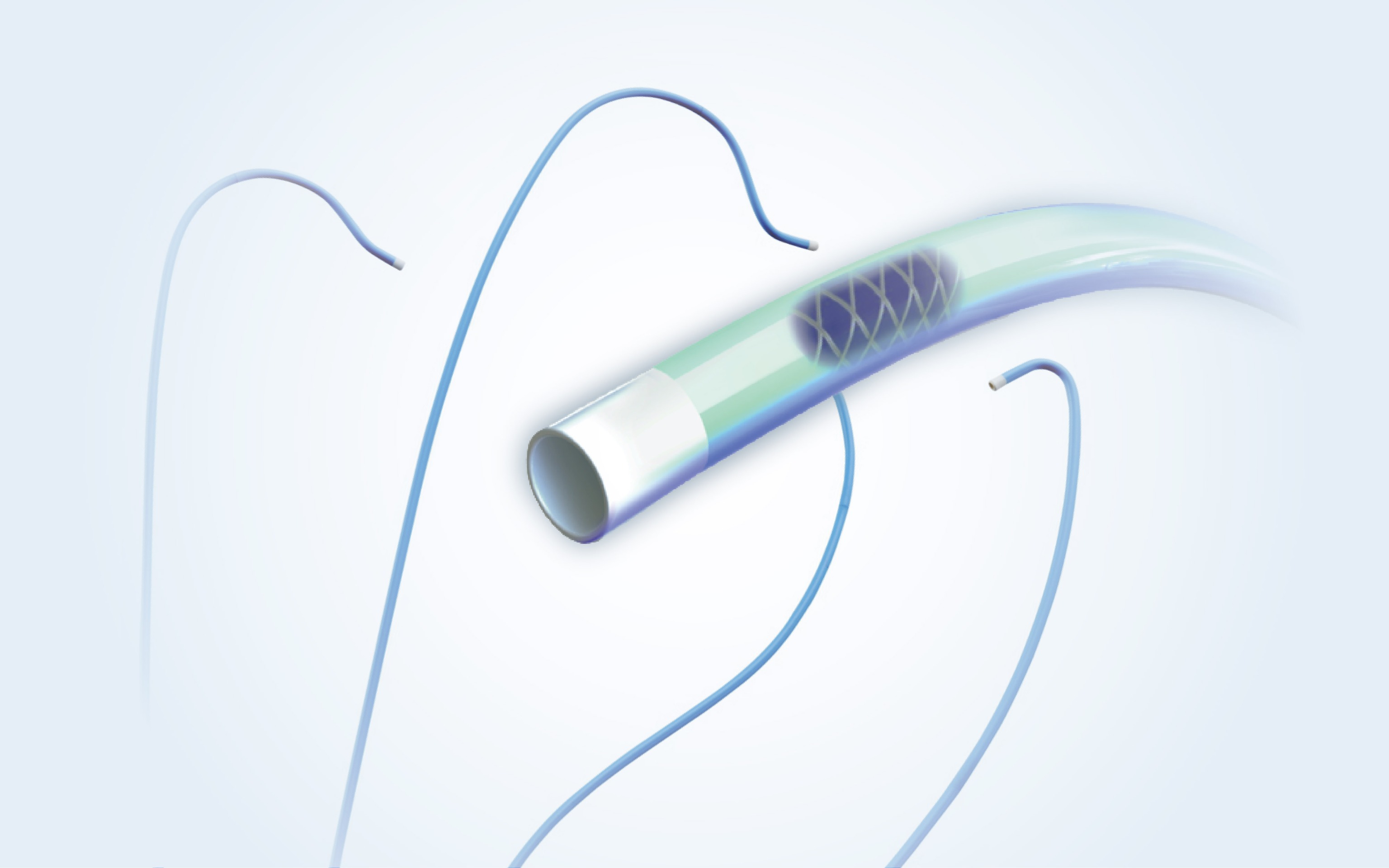

A braided tubing usually consists of three layers. They are inner layers, braided reinforcement and outer layer. By designing different braiding constructions, CuuMed can offer you a customized braid-reinforced shaft to best fit your needs. Shaft Dimensions: OD range: 4Fr-7Fr

What Features does CUUMed braided tube have?

◆High torque ◆More column strength ◆ Kink resistance ◆ Higher tensile strength ◆Burst pressure resistance ◆ Excellent pushability and flexibility ◆ Stiffness

To see MORE PRODUCT INFORMATION, please click the below document.

Braided Catheter Configuration
Braided Catheter Configuration
Braided Catheter Configuration

What materials does CUUMed provide for the 3 layers braided tube?

For liner and jacket, we provide several medical-grade polymers. Any custom blend is welcomed. For braided layer, we provide stainless steel 304(round/ flat), stainless steel 316(round/ flat), nylon and nitinol

What braiding patterns does CUUMed offer?

Cuumed offers various braiding patterns including Diamond(2 wires under 2 over 2), Herringbone (1 wire under 2 over 2) and Half Diamond (1 wire under 1 over 1).

Value-added capability & Application
Value-added capability & Application
Value-added capability & Application

What medical devices are braided tubes commonly used in?

◆Stent delivery catheters Guiding catheters Angiographic catheter Kink resistant sheaths Endoscopic assemblies EP catheter Ablation catheters

Value-added capabilities:

 Extrusion Tubing for Braided catheter

 Tipping, Marker band bonded

 Insert molding- lures, tips

 Braid termination technology

 Hole punching & drilling
